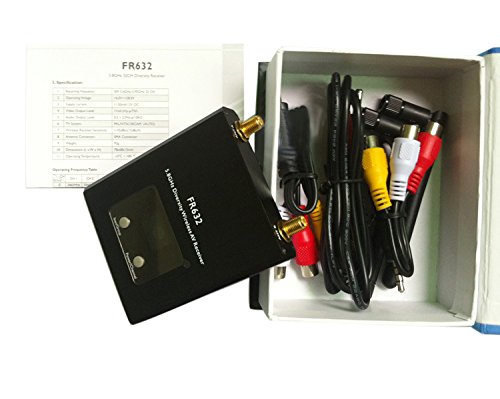

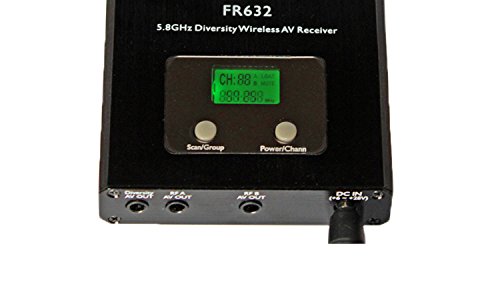

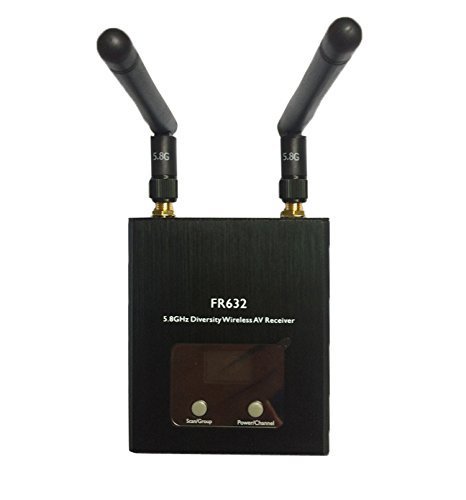

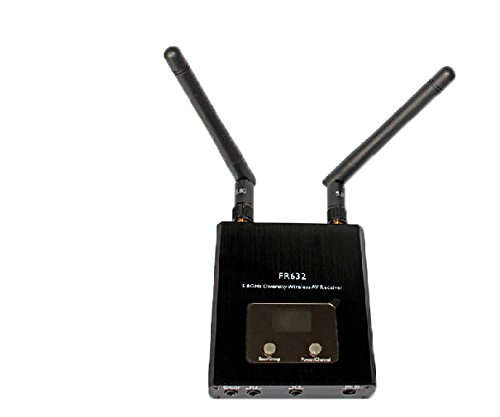

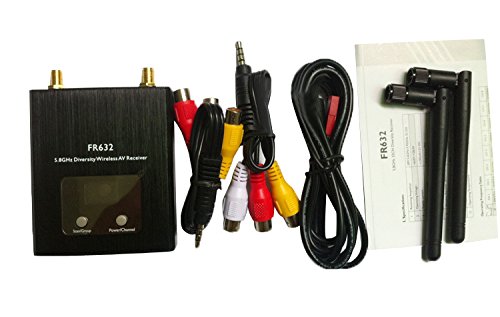

Description: Receiving frequency:ISM 5.6GHz-5.95GHz 32 CH Operating voltage:+6.0V~+28.0V Supply current: Video output level:1V±0.2Vp-p/75Ω Audio output level:0.5 ~ 2.0Vp-p/10KΩ Outputs:RF1, RF2, Diversity TV system:PAL/NTSC/SECAM (AUTO) Wireless receiver sensitivity:-92dBm(15dBuV) Antenna connector:SMA connector Weight:92g Dimensions (L x W x H):78x68x15mm Operating temperature:-10 ~ +85 Features:32 ChannelAutomatic Switching Built-in Dual Receiver Automatically for best reception.Unique channel search function.Large input voltage range, Very low current consumption.Not affect by 2.4GHz R/C Radios.LCD display, high brightness, very intuitive work status.Auto channel scan and lock on. True 5.8GHz 32CH diversity system with indicator. Diversity and A B A/V.Back light LCD.REV1.3 versionPackage included:1 x FR632 receiver1 x Power and A/V cables2 x dipole antennas2 x RCA cable1 x Manual
